T850一KM5290 High-coverage matte black ink

发布时间：2026/07/01 | 浏览量：1

T850-KM5290 is a two-component glass insulating ink developed to meet the high-performance requirements of the touch screen industry. The cured coating film exhibits excellent adhesion, water resistance, and chemical resistance, while also boasting good printability, high surface hardness, and wear resistance.
Scope of application: Typically used for ordinary glass and tempered glass.

1. Performance characteristics:
Its significant advantages include its environmental friendliness, absence of irritating odors, medium-to-high surface tension, good thixotropic structure (less prone to dimensional changes), moderate drying speed, and low corrosivity.
2. Usage:
a. Before use, please add 10% of the matching T850-ZY900 curing agent and an appropriate amount of diluent, and mix them thoroughly before printing.
b. The recommended baking temperature is 160℃, with a duration of 10-15 minutes. For other conditions, please first confirm their feasibility to avoid affecting the quality of the finished product.

c. When printing multiple layers, the first layer can be cured at 160℃ for 10 minutes, and the second layer can be cured at 160℃ for 15 minutes to ensure quality.
d. The selection and dosage of diluent are entirely adjusted based on the screen mesh count, environmental conditions, and printing effects.
3. Storage conditions:
Before and after use, the ink containers of this series should be completely sealed and stored in a cool and ventilated place, avoiding exposure to open flames or high temperatures.
4. Shelf life:
The shelf life of this series of products is one year from the date of production. Please reconfirm their usability if they exceed the shelf life.

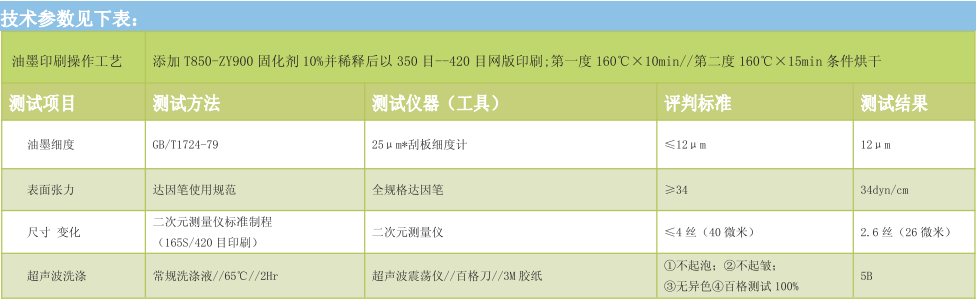

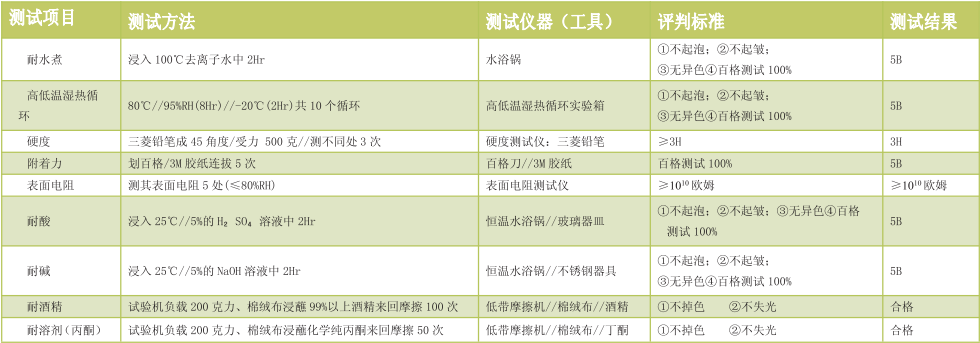

Attachment 1: The endurance test data in the above items are the results tested under the company’s test conditions, for reference only and are not listed as guaranteed values.
Attachment 2: All products in this series meet the standards for various testing data, including EU ROHS2.0, REACH, halogen, and eight major heavy metals.
